Jcb Excavators 8056 Factory Service Shop Manual

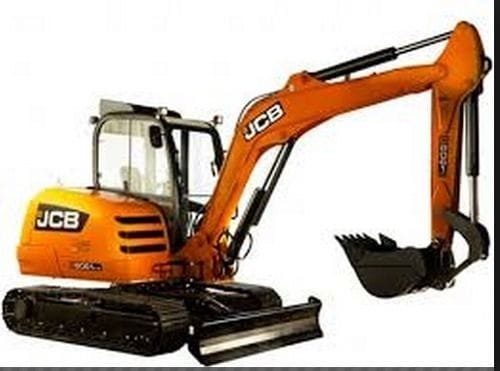

Excavators 8056
This JCB Excavators 8056 service & fixing manual (including maintenance, overhaul, disassembling & putting together, modification, tune-up, procedure, inspecting, analysis & troubleshooting …) is separated into different areas. Each section covers a particular element or system with in-depth images. A table of contents is positioned at the beginning of each area. Pages are quickly found by category, as well as each web page is expandable for excellent detail. The printer-ready PDF files function like an appeal on all type of devices.
FILELIST:
9803-9296 – JCB Excavators 8056 Solution Manaual.pdf
EXCERPT:
Service Guidebook
8056
Area 1 – General Details
Section 2 – Care as well as Security
Area 3 – Maintenance
Section A – Accessories
Section B – Body and also Structure
Section C – Electrics
Section D – Controls
Area E – Hydraulics
Section F – Gearboxes
Area J – Track and also Running Equipment
Section K – Engine
[wp_eStore_buy_now_fancy id=2120]
[wp_eStore_cart_fancy1_when_not_empty]
Jcb Excavators 8056 Factory Service Shop Manual
Generator
Removal and Replacement
Elimination
1 Raise the engine cover.
2 Disconnect the battery. Separate the earth lead first.
Fig 24.
3 Loosen up the alternator mounting bolt A situated below the generator and also B and also on the readjusting bracket. Eliminate the follower belt C from the generator drive pulley-block.
4 Detach the electrical connections from the alternator.
5 Support the generator and remove the mounting bolts.
6 Remove the alternator.
Substitute
1 Placed the generator ready and also install the placing screws, Do not tighten up the screws.
2 Put the follower belt on to the sheave.
3 Depress the follower belt C at the centre between the generator pulley-block and also the crankshaft pulley with a finger force of 49Nm, (11lbf – 5kgf) approx. The belt deflection need to be 10 mm (0.4 in) approx.
4 Connect the electric connections.
5 Reconnect the battery.
Essential: Connect the planet lead last.
B 6 Close the engine cover.
